I. Product Description

1. Manual control or computer control can be selected as needed;

2. Servo motor controls the arrangement width and distance, which can be set by computer according to the strap specifications;

3. Frequency conversion closed-loop control of winding speed;

4. Winding width can be set according to requirements;

5. Automatically adjusts winding tension;

6. Perfect winding curve of the strap coil;

7. Can wind straps of 5-32mm;

8. The diameter of the winding coil is 200mm and 405mm, which can be set to the specified size as needed. The maximum diameter of the winding coil can reach 1100mm.

II. Winder

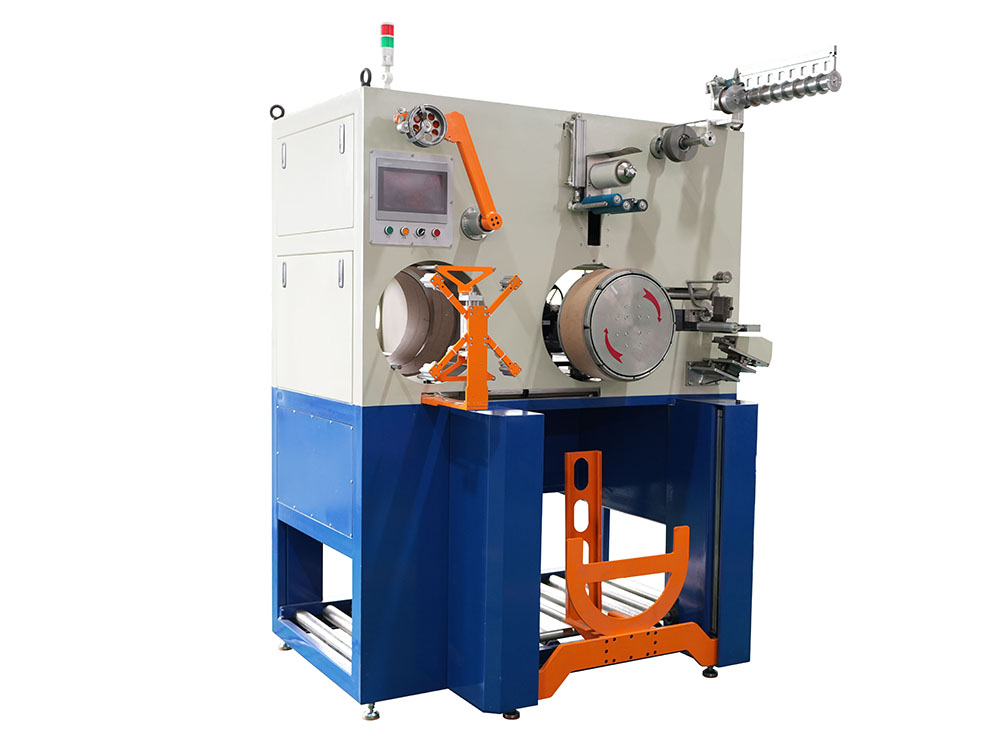

1. Large Automatic Strapping Winder

• Winding capacity: 300KG of strapping;

• Winding outer diameter: up to 1500mm;

• Servo winding arrangement: According to the set strap specifications, the computer controls custom winding arrangement without replacing any components;

• The wound strap has excellent straightness, meeting the requirements of automatic packaging.

III. Video
